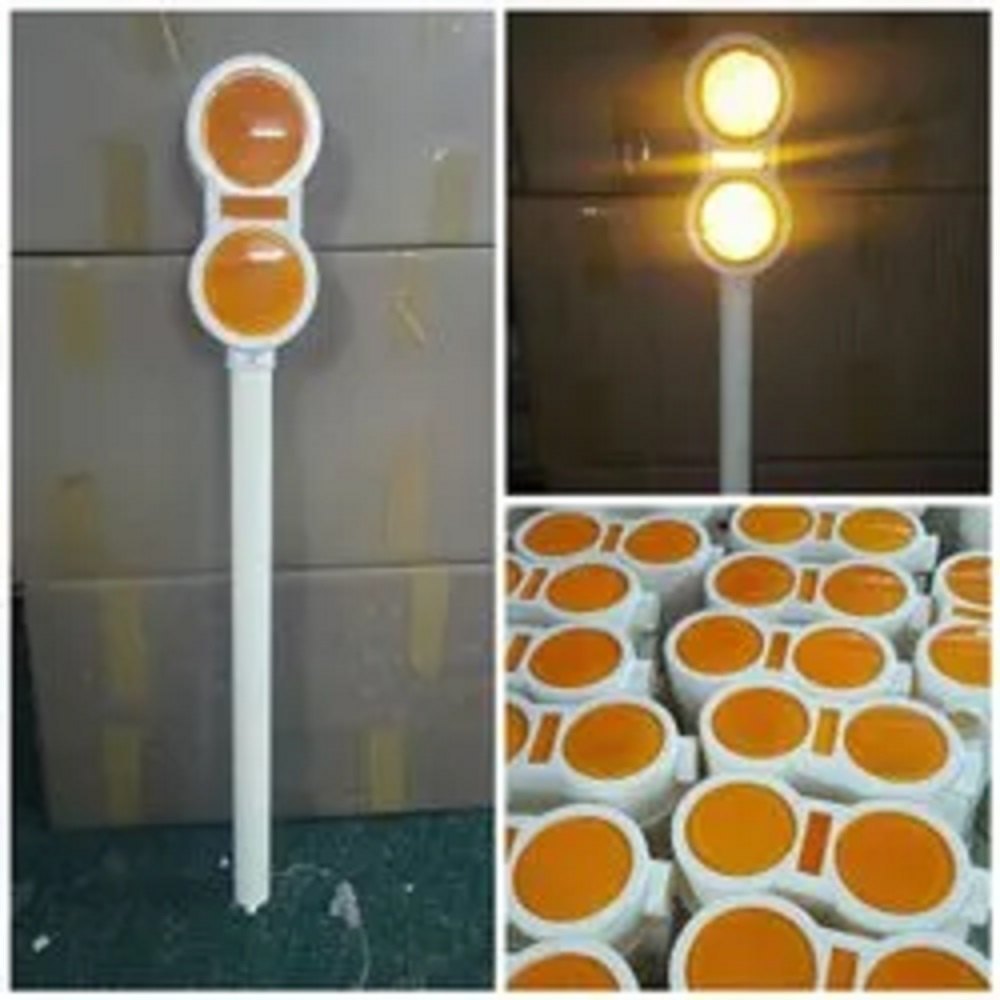

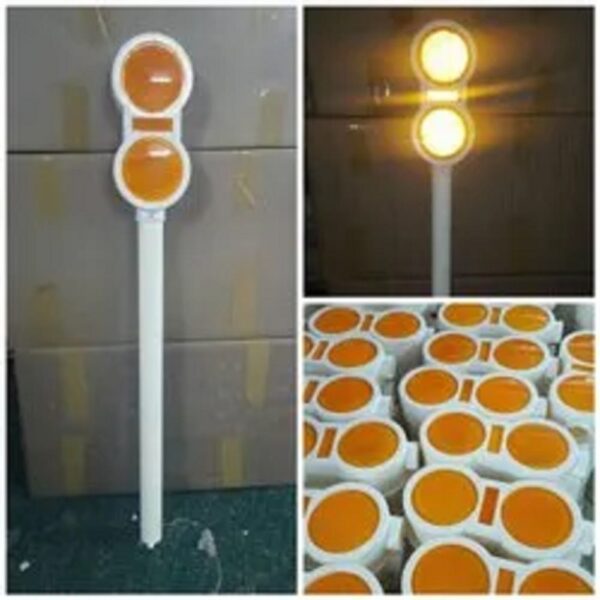

The Metal Delineator with Twin Reflectors from MyCorp Technologies is engineered for durable, high-visibility road safety marking. It features two oval-shaped MS plates (approx. 300 mm x 170 mm), powder coated for corrosion resistance. Each plate is fitted with 100 mm diameter high-intensity acrylic reflectors, precisely positioned to face opposite directions, ensuring visibility from both sides.
Mounted on a 1,100 mm tall, 50 mm dia, 1.2 mm thick powder-coated metal pipe, the delineator is designed for easy roadside installation. An anti-theft locking arm system secures the unit firmly. To enhance nighttime visibility, the pipe is wrapped with two 1″ wide retro reflective tapes just below the reflector plates.
📋 Specifications:
-
Plate: 2 mm thick MS, oval (300 mm × 170 mm)
-
Reflectors: 2 × 100 mm high-intensity acrylic reflectors
-
Pole Height: Approx. 1100 mm
-
Pipe Diameter: 50 mm | Thickness: 1.2 mm | Powder-coated
-
Tape: 2 × 1” high-intensity retro-reflective strips
-
Features: Anti-theft locking arm, dual-sided visibility, weather-resistant finish
-
Usage: Highway curves, medians, junctions, accident-prone zones
🚧 Applications:
-
National & state highways
-
Expressway dividers
-
Sharp bends and U-turns
-
Urban traffic management areas
-
Road infrastructure projects
